Rapid Tooling Services: Production-Grade T1 Parts in 10–15 Days

Bypass fragile 3D-printed resins and 8-week hard-tooling delays. YG Tech machines precision MUD quick-change inserts and P20/NAK80 bridge molds to ±0.005mm steel tolerances—delivering real thermoplastic parts for DVT/PVT validation and 1,000+ unit market launches.

10–15 Days T1 Molded Samples
±0.005mm Steel / ±0.01mm Part Tolerance
1,000 pcs Flexible Low-Volume MOQ
Strict NDA Protection Free DFM & Moldflow Analysis 100% Mold Ownership
VERIFIED OEM/ODM BASELINE:
ISO 9001 & 13485 Medical Certified
40,000 m² Dual Dongguan Plants
Makino & Sodick ±0.005mm EDM/CNC
130+ Sumitomo/Haitian (50T–800T)
Los Angeles Warehouse Support
ENGINEERING ECONOMICS & AGILITY

Why Hardware Teams Choose Rapid & Bridge Tooling Over 3D Printing

SLA and SLS 3D prints cannot replicate injection shear stress, weld-line integrity, or optical clarity during drop tests and regulatory certification. Our rapid tooling services eliminate heavy upfront capital lock-up while molding your exact production resins—from Optical PC and TPU to PA66+GF30—inside our ISO Class 8 and automated press facilities.

01 / COST EFFICIENCY

50%+ Tooling Savings via MUD Architecture

Instead of funding a dedicated multi-plate mold base, you only pay for custom-machined core and cavity inserts mounted into YG Tech's standardized Master Unit Die (MUD) quick-change frames.

CAPEX Impact Save 50%–65% Upfront
02 / MATERIAL FIDELITY

True End-Use Resins & 2K Overmolding

Validate real snap-fit fatigue, chemical resistance, and IP68 sealing using commercial-grade PC, ABS, TPE/TPU, LSR, or PEEK—with full support for N52 magnet encapsulation and brass insert molding.

Molding Tolerance ±0.01mm Repeatability
03 / ITERATION AGILITY

Steel-Safe ECO Modifications in 3–5 Days

DVT and PVT assemblies inevitably require structural tuning. We engineer rapid molds with steel-safe allowances, enabling rapid rib, boss, or wall-thickness revisions without scrapping the tool.

Steel Precision ±0.005mm CNC / EDM
04 / BRIDGE TO SCALE

Zero-Gap Bridge from 1,000 to 100k+ Units

Fulfill early retail pilots, clinical trials, or crowdfunding backers with a 1,000 pcs MOQ while your high-cavitation H13/S136 mass-production mold is being built in parallel.

T1 Sample Delivery 10–15 Calendar Days
SCALABLE TOOLING ARCHITECTURE

3-Tier Rapid Tooling Solutions Matched to Your Product Lifecycle

Select the exact mold structure, pre-hardened steel grade, and cavitation strategy required for your DVT validation or low-volume bridge production run.

MUD Quick-Change Core and Cavity Inserts TIER 01 / DVT & EVT VALIDATION

MUD Quick-Change Core & Cavity Inserts

Custom-machined core and cavity inserts that lock into our shared Master Unit Die (MUD) frames—slashing mold base cost and machining lead time by over 50%.

Core Steel Grade P20 / 718H Steel
T1 Sample Lead Time 10 Calendar Days
Guaranteed Life 5,000 – 25,000 Shots
Cavitation & Gate 1×1 or Family / Cold
Pre-Hardened Steel Bridge Tooling NAK80 P20 TIER 02 / PVT & MARKET LAUNCH

Standalone Pre-Hardened Bridge Molds

Dedicated LKM mold bases for parts requiring side-action sliders, lifters, or SPI-A2/VDI textures. Bridges 1,000 pcs pilot runs to full commercial scale.

Core Steel Grade NAK80 / P20 / S136H
T1 Sample Lead Time 12 – 15 Calendar Days
Guaranteed Life 50,000 – 100k+ Shots
Cavitation & Gate 1×1 to 1×4 / Semi-Hot
Specialty 2K Overmolding and Insert Rapid Tooling TIER 03 / SPECIALTY PROCESSES

2K Overmolding, LSR & Insert Rapid Tools

De-risk PC+TPU overmolding adhesion, N52 magnet encapsulation, optical PC lenses, and ISO Class 8 medical LSR parts at ±0.005mm insert accuracy.

Core Steel Grade S136 / H13 Optical
T1 Sample Lead Time 14 – 18 Calendar Days
Insert / Steel Tol. ±0.005mm CNC / EDM
Molding Environment ISO Class 8 / 2K Press
TOOLING DECISION MATRIX

Rapid Bridge Tooling vs. Mass Production Tooling vs. 3D Printing

Avoid burning capital on premature hard tooling or delaying certification with fragile 3D prints. Compare engineering trade-offs across steel grades, tolerances, and unit economics.

Engineering Parameter RECOMMENDED FOR DVT / PVT & LAUNCHYG Tech Rapid & Bridge ToolingClass-101 Mass Production Tooling3D Printing / CNC Prototypes
Mold & Steel Architecture MUD Frame or Bridge Base(P20, NAK80, Pre-Hardened S136)Multi-Cavity Hot Runner (Hardened H13 / S136, 48–52 HRC)Toolless Additive Layering or 5-Axis CNC Workholding
Machining & Part Tolerance ±0.005mmSteel / ±0.01mmMolded Part±0.005mm Steel / ±0.01mm Molded Part±0.10mm – ±0.20mm (Anisotropic Warpage Risk)
T1 Sample Lead Time 10 – 15 Calendar Days25 – 35+ Calendar Days3 – 7 Calendar Days
Tool Life & Optimal MOQ 5,000 – 100,000+ Shots(Flexible 1,000 pcs MOQ)500,000 – 1,000,000+ Shots (100,000+ pcs Volume)1 – 50 Units Only (Zero Volume Scalability)
Material & Process Scope 100% Commercial Resins(PC, TPU, LSR, PEEK, 2K & Insert)100% Commercial Resins (High Setup Amortization)Simulated Resins (Fails Drop, Optical & IP68 Tests)
Post-T1 ECO Modification Fast Steel-Safe Tuning (3–5 Days)at Minimal CostSlow & Costly (Requires Annealing, Welding & Re-EDM)Instant CAD Update (Re-Machining Required per Unit)
Parallel Bridge-to-Scale Strategy:Fulfill initial 1,000–5,000 unit orders in 10 days with a MUD rapid tool while we simultaneously build your multi-cavity hardened S136 mass-production mold.
Discuss Your Volume & Timeline

Unsure Whether MUD Inserts or a Standalone Bridge Mold Fits Your CAD?

Upload your 3D files ( .STEP, .IGES, or .X_T) for a complimentary engineering evaluation within 24 hours. Our senior tooling engineers will simulate resin flow, pinpoint sink-mark or weld-line risks, and quote both rapid and mass-production tooling options side by side.

Draft Angle, Undercut & Wall Uniformity Audit
Gate Location, Parting Line & Moldflow Simulation
Upfront NDA Protection & 100% Mold Ownership
YG Tech Free 24h DFM and Moldflow Engineering Analysis
NICHE TRACK RECORD ($30+ RETAIL HARDWARE)

High-Value Accessories & Precision Enclosures Validated via Rapid Tooling

Purpose-built rapid MUD inserts and pre-hardened bridge molds for consumer electronics, collectible armor, and medical OEMs demanding cosmetic perfection and tight assembly tolerances from T1.

Custom 2K Overmolded Rugged MagSafe Phone Case Rapid Tooling 01 / MAGSAFE ARMOR

Functional & Rugged MagSafe Cases

3m drop-test validation, chemical PC+TPU bonding, and flush N52 magnet array retention in 12 days via NAK80/S136 bridge tools.

Process 2K Overmolding + N52 Magnet Insert
Resin Grades Bayer Optical PC + Anti-Yellowing TPU
Tolerance ±0.005mm Magnet Pocket / ±0.01mm Fit
Collectible Grading Card Slab Protector Optical Bridge Mold 02 / COLLECTIBLE VAULTS

Grading Card (Slab) & Display Protectors

PSA/BGS slab armor and sneaker vaults molded with zero gate vestige, glass-like clarity, and crisp snap-fit locking clasps.

Process Optical Mirror Bridge Tool + Co-Molding
Resin Grades UV-Stabilized Optical PC + PMMA + TPE
Surface & Fit SPI-A1 Mirror Polish / ±0.01mm Clasp
ISO 13485 Medical Diagnostic Device Housing Bridge Tooling 03 / ISO 13485 MEDICAL

Medical Diagnostic & Handheld Housings

Accelerate FDA/CE clinical trials with cleanroom-molded enclosures built to withstand sterilization and chemical disinfectants.

Process ISO Class 8 Cleanroom + LSR Overmold
Resin Grades SABIC Cycoloy PC/ABS + Medical LSR
Tolerance ±0.01mm IP67/IP68 Mating Seam
Industrial AR VR Optical Visor and Child-Resistant Enclosure 04 / XR & SPECIALTY

AR/VR Optical Visors & Child-Safe Cases

Distortion-free XR optical visors, carbon-fiber sensor frames, and multi-stage child-resistant mechanical latch enclosures.

Process S136 Optical Tooling / 10-Day MUD
Resin Grades Optical PC, PA66+CF30, PPS & PEEK
Tolerance ±0.005mm Sensor Boss & Latch Fit
CLOSED-LOOP EXECUTION PROTOCOL

From 3D CAD to CMM-Verified T1 Samples in 10–15 Days

Speed in rapid tooling never means skipping metrology. Every MUD insert and bridge mold follows a locked 4-stage milestone schedule inside our ISO 9001 & ISO 13485 Dongguan plants.

DAY 01 24H RESPONSE
01 / ENGINEERING & DFM

DFM Audit & Moldflow Simulation

Line-by-line review of draft angles, parting lines, and wall thickness alongside Moldflow thermal fill simulation. Critical features are engineered with steel-safe allowances for rapid post-T1 tuning.

  • Slide-by-Slide DFM Report
  • Weld-Line & Sink Simulation
  • 2D/3D Mold Layout Approval
DAYS 02–08 ±0.005mm STEEL
02 / PRECISION TOOLMAKING

High-Speed CNC & Sodick EDM

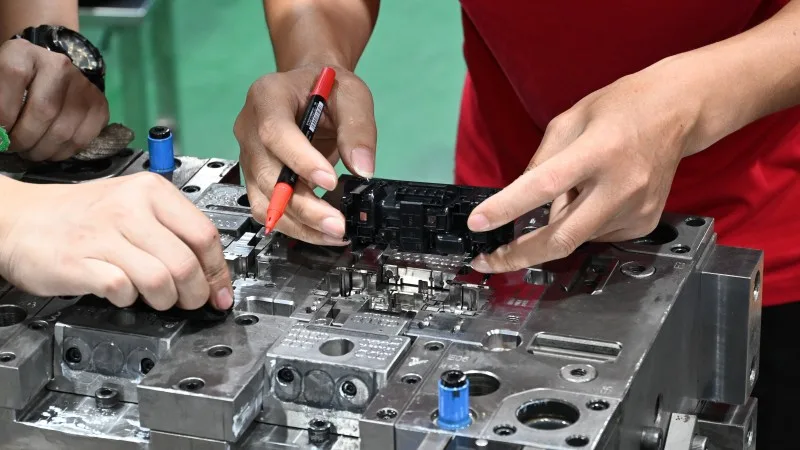

P20, NAK80, or S136 cores are milled on Makino/Mikron 5-axis CNC centers and spark-eroded on Sodick mirror EDM machines. In-process CMM electrode checks guarantee ±0.005mm steel accuracy.

  • Makino / Mikron 5-Axis CNC
  • Sodick Mirror Sinker & Wire EDM
  • SPI-A1 Polish / VDI 3400 Texture
DAYS 09–11 50T–800T PRESSES
03 / SCIENTIFIC TRIAL

T1 Molding & Process Locking

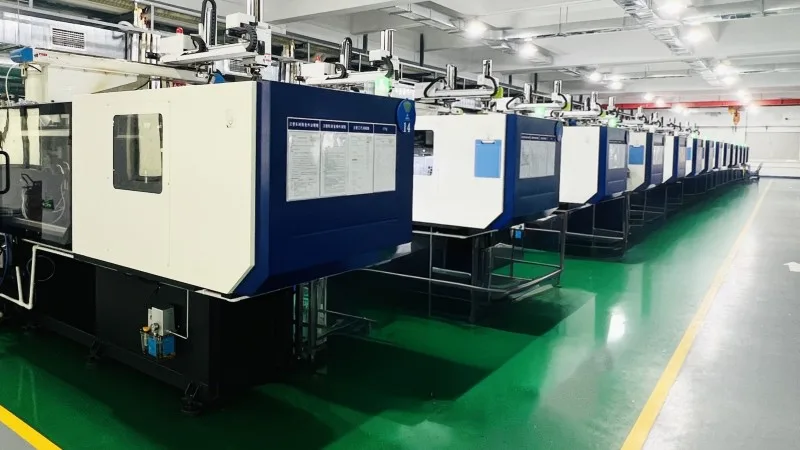

MUD inserts or standalone molds are mounted onto our 130+ Sumitomo and Haitian presses (including 2K rotary & ISO Class 8 cleanroom units) to lock melt temp, holding pressure, and cycle time.

  • Unedited HD T1 Trial Video
  • Locked Molding Parameter Sheet
  • Initial T1 Sample Express Dispatch
DAYS 12–15 ±0.01mm FAI QC
04 / METROLOGY & SCALE

Hexagon CMM & 1,000+ Bridge Run

T1 samples undergo Hexagon CMM and optical metrology to verify ±0.01mm CTQ dimensions. Once signed off, we execute 3–5 day steel-safe ECOs or launch your 1,000+ unit bridge production run.

  • Hexagon CMM FAI Report
  • 3–5 Day Steel-Safe ECO Tuning
  • Direct Air / LA Warehouse Fulfillment
TECHNICAL & COMMERCIAL FAQ

Rapid & Bridge Tooling Engineering Questions Answered

01. Why does YG Tech use P20, NAK80, and S136 steel for rapid tooling instead of aluminum?

While 7075 aluminum is marketed by some prototype shops, it suffers from rapid parting-line wear, galling on sliding shut-offs, and flash defects after just a few hundred shots—especially when molding glass-filled resins (PA+GF), high-viscosity Optical PC, or 2K overmolded TPU. By combining our high-speed Makino CNC and Sodick EDM workflows with standardized MUD quick-change frames, we machine pre-hardened P20, NAK80, and S136 steelin the same 10–15 day window at comparable cost, while delivering ±0.005mm steel accuracy, SPI-A1 optical polish capability, and 5× to 10× longer tool life.

02. How do Engineering Change Orders (ECOs) work after T1 sample evaluation?

Hardware validation during DVT and PVT almost always requires fine-tuning snap-fit retention, boss diameters, or wall thickness. During Phase 01 DFM, our engineers intentionally design critical features with steel-safe allowances(meaning modifications only require removing steel via CNC/EDM rather than welding). Most steel-safe ECO revisions are completed and re-sampled (T2) within 3 to 5 calendar days.

03. Do we own 100% of the rapid mold or MUD inserts after final payment?

Yes. Upon final tooling payment, you hold 100% legal ownershipof your custom-machined MUD core/cavity inserts or standalone bridge mold. We never hold customer tooling hostage. We provide complimentary climate-controlled mold storage and preventative maintenance in our Dongguan facility for your ongoing bridge production, or we can crate and export standalone molds globally upon request.

04. Can rapid bridge tooling handle 2K overmolding, LSR, or N52 magnet insert molding?

Absolutely. Unlike basic prototype shops limited to simple open-and-shut single-shot parts, our Tier 03 Specialty Rapid Toolsare engineered specifically to validate multi-material bonding (such as Optical PC + TPU for rugged MagSafe cases), in-mold N52 magnet array encapsulation, knurled brass inserts, and ISO Class 8 medical Liquid Silicone Rubber (LSR) seals prior to high-cavitation hard tooling.

05. How do we transition from a 1,000 pcs bridge run to 100,000+ mass production without supply gaps?

We execute a Parallel Bridge-to-Scale Workflow. Once your design is frozen on the rapid bridge tool, that tool immediately enters low-volume production (1,000–50,000 pcs) to fulfill early retail launches, clinical trials, or crowdfunding backers. Simultaneously, our mold shop builds your multi-cavity, through-hardened H13/S136 mass-production tool—leveraging the exact shrinkage and gating data proven during your rapid tooling run.

06. What information is required to receive an accurate 24-hour rapid tooling quote?

To receive a complete quotation and preliminary DFM review within 24 hours, please provide: (1) 3D CAD files in .STEP, .IGES, or .X_Tformat; (2) 2D engineering drawings in .PDFhighlighting critical-to-quality (±0.01mm) tolerances and cosmetic zones; (3) Specified resin grade and color/finish standard (Pantone, SPI, or VDI 3400); and (4) Your target T1 sample quantity plus estimated pilot/annual volume.
