Procuring a standard mold is mostly a sourcing exercise. Custom plastic mold making is an engineering problem, solved before any steel is cut. For OEMs developing consumer electronics, medical devices, or automotive components, a standard mold base and a basic two-plate ejection system rarely hold up against real part geometry — internal threads, deep undercuts, side-wall ports, and tolerances that leave no room for tooling error.
At YG TECH, we engineer tooling around the part, not the other way around. That means active mechanical systems where the geometry demands them, CNC and EDM machining held to ±0.01mm, and mold construction on authentic LKM bases rather than generic substitutes. This guide walks through how that engineering process actually works — from DFM validation through multi-cavity scaling — and closes with a real project where a standard approach genuinely wasn’t an option.
What Separates Custom Mold Making From Standard Tooling
A standard mold is, mechanically speaking, a cavity and a core that separate in one direction. It works when the part geometry allows the finished piece to simply pull free. The moment a CAD design introduces internal threads, a side hole, or a snap feature that faces the wrong way, that simple two-plate logic breaks down — and a true custom injection mold manufacturer has to design an active mechanism to get the part out intact.
Three mechanisms cover most of what OEM-grade parts actually need:
Hydraulic core pulls
A hydraulic cylinder retracts a core sideways before ejection, releasing side holes, ports, or windows that a standard slide can’t reach cleanly or that need a longer, more forceful stroke than a cam pin can deliver.
Automatic unscrewing mechanisms
For molded-in internal threads, a geared or rack-driven core rotates itself out of the part as the mold opens — producing a finished thread in a single shot instead of requiring a secondary tapping operation.
Multi-stage lifters
For internal undercuts stacked on top of each other, a single lifter isn’t enough. A multi-stage lifter releases in sequence — first one motion, then the next — clearing geometry that a single-angle pin physically can’t.
Integrating these mechanisms directly into the tool means intricate structural features mold correctly within one automated cycle, with no manual secondary machining or assembly step afterward. For the fundamentals of when a feature needs a mechanism at all — and the more common, lower-cost slide and lifter options for simpler undercuts — see our guide on designing for injection molding. This article picks up where that one leaves off: parts where the mechanism itself has to be custom-engineered, not selected from a standard playbook.

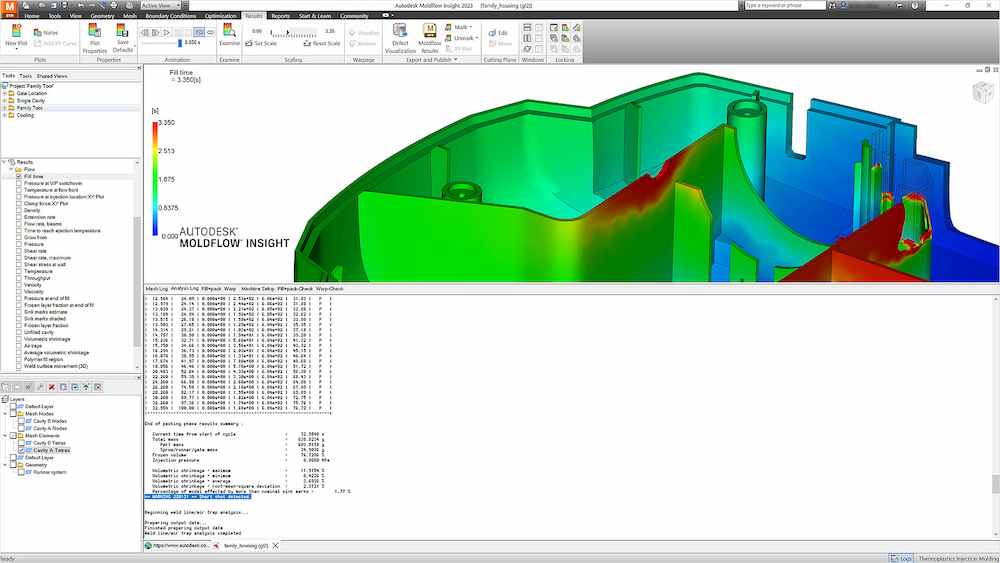

DFM and Mold Flow Analysis: The Engineering Prerequisite
We don’t execute a custom tooling build on guesswork, and with active mechanisms involved, guesswork is a considerably more expensive way to find out something doesn’t work. Before any tool design is finalized, every project goes through a mandatory Design for Manufacturability (DFM) review paired with mold flow simulation.
- Melt front simulation predicts how resin fills the cavity, flagging areas where flow stalls or two fronts meet and form a visible weld line.
- Temperature distribution modeling identifies hot spots — critical around any active mechanism, where a core pull or lifter interrupts the natural cooling channel layout.
- Volumetric shrinkage analysis predicts sink marks and warp before they show up on a physical T1 sample, letting us adjust gate location or wall geometry digitally instead of by trial and error in steel.
For a full breakdown of the wall thickness, draft angle, and undercut rules this analysis is checking against, see our DFM design guide. On custom tooling projects specifically, this step also optimizes gate locations and conformal cooling layouts around whatever active mechanism the part requires — ensuring the mechanism doesn’t just release the part, but does so without leaving a cold spot that shows up as a defect later.
The goal is straightforward: your T0 samples should meet print specification on the first real shot, not the fourth. Every DFM finding is logged as part of our ISO 9001-certified quality assurance process, so the reasoning behind every gate and cooling-line decision is documented, not just remembered.
Precision CNC and EDM Machining for Complex Geometries
Custom geometries leave far less room for machining error than a simple cavity. A fraction of a millimeter of mismatch at a parting line or slide interface can show up as flash, a short shot, or — on a part with an active mechanism — a component that jams instead of releasing. Working on in-house Makino and Mikron CNC centers, we hold steel machining tolerances of ±0.01mm as standard on custom tooling, not as a premium option.

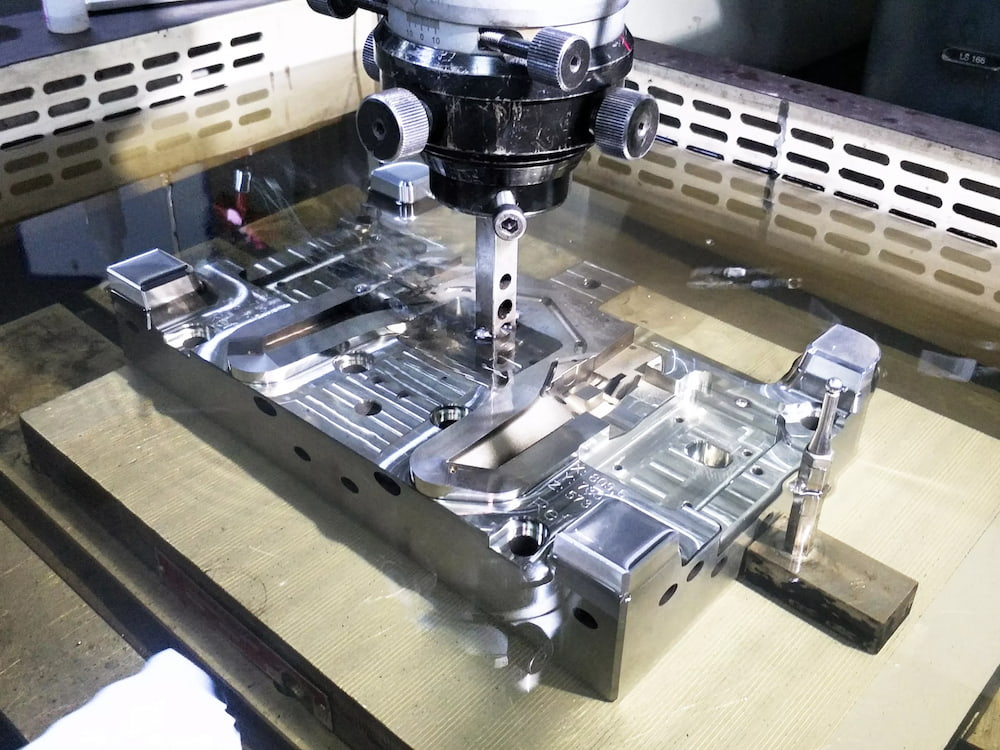

Dimensional accuracy is only half of the machining story. Custom cosmetic parts also need the surface finish to match the design intent exactly, which is where Electrical Discharge Machining (EDM) comes in — burning fine detail and texture directly into the steel that a rotating cutter can’t reach.
| Finish Grade | Approx. Ra | Typical Use |
|---|---|---|
| SPI A1–A2 (mirror EDM polish) | 0.02 – 0.10 µm | Optically clear lenses, high-gloss cosmetic surfaces |
| SPI A3 / B1 | 0.10 – 0.40 µm | Standard consumer electronics housings |
| VDI 3400 (textured EDM) | 0.4 – 18 µm across 12 grades | Leather-grain, matte, and functional grip surfaces |
Our mirror EDM capability reaches SPI A2 finishes for optically clear components, alongside precise VDI 3400 textures cut directly into the cavity surface — ensuring the same aesthetic and tactile finish is reproduced identically, cavity to cavity, across a full production run. (Reference: RapidPT, SPI Surface Finish Standards)
Scaling Up: Multi-Cavity Tooling and Steel Selection

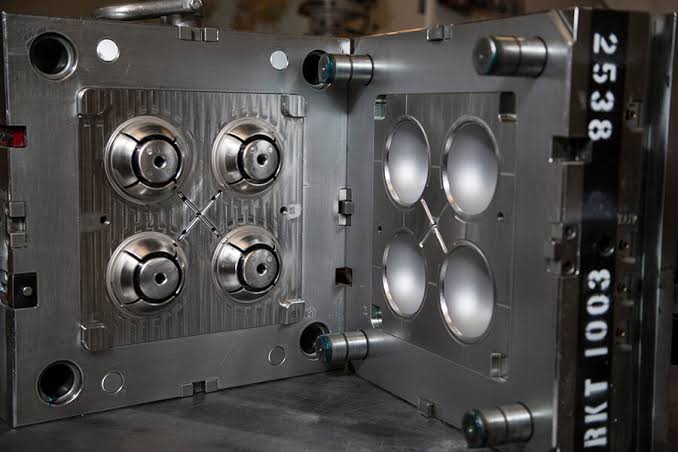

The real test of custom tooling engineering isn’t building one working cavity — it’s building thirty-two of them that all perform identically, shot after shot, for the life of the tool. For small, high-demand parts, we design and build high-capacity multi-cavity tools scaling up to 32-cavity (1×32) configurations.
At that scale, the hot runner system is doing as much work as the steel. A balanced hot runner — one where every cavity fills at the same time, under the same pressure — is what keeps 32 cavities producing parts within the same dimensional tolerance instead of drifting apart over a production run. We build on globally supported systems from YUDO or Mold-Masters, chosen per project based on cavitation count, gate control requirements, and budget — Mold-Masters for the most demanding balance and cycle-time requirements, YUDO where proven global performance at a more accessible cost fits the project better.

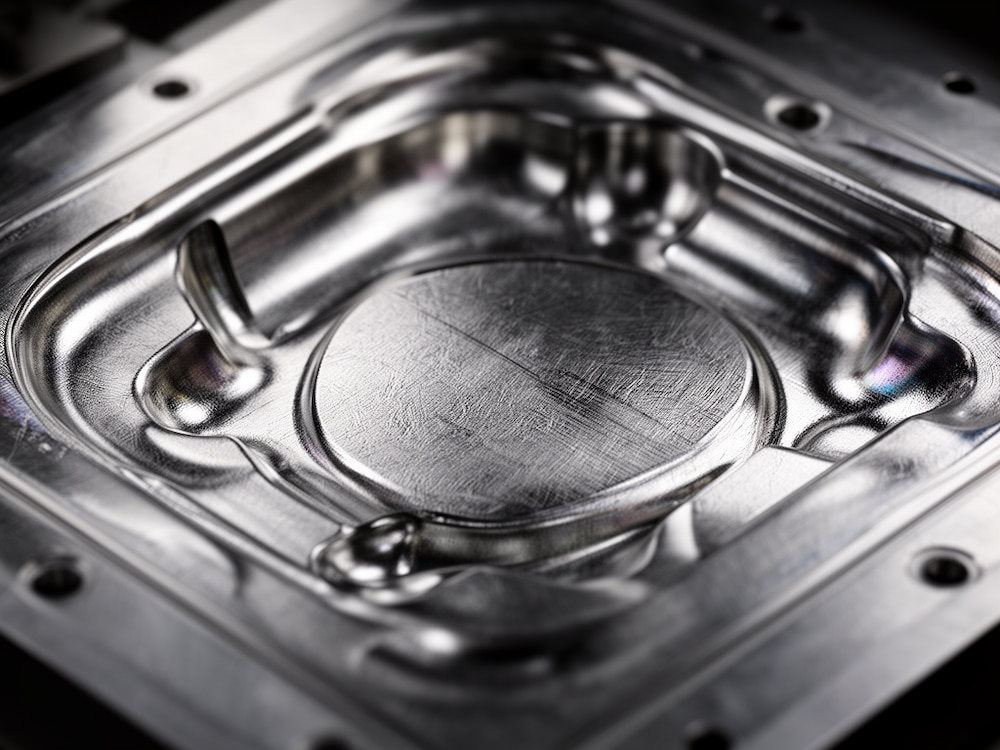

Tool steel is matched to expected product lifecycle, not defaulted to a single grade across every project:
- P20 — sufficient for mid-volume runs where the tool isn’t expected to clear a million cycles.
- Swedish ASSAB S136 or NAK80 — specified for 32-cavity tools, where every cavity has to hold its dimensional accuracy in lockstep across a shot count in the millions, not just survive to that number.
For a full comparison of P20, NAK80, and S136 — hardness, expected shot life, and relative tooling cost — see our guide on injection mold cost. Matched correctly to a hot runner system built for the same cavitation count, these tools are engineered to run flawlessly past 1,000,000 shots.
Case Study: Engineering a Custom Mold for a Smart Glasses Temple
To illustrate how this problem-solving actually plays out on a real part, here’s a project YG TECH engineered for a smart-wearables OEM — the temple (arm) of a pair of smart glasses. Client details are withheld at the customer’s request; the engineering challenge and solution are presented as built.
The temple needed to house an internal flex cable inside a cross-section barely large enough for the cable itself — with no room left over for a conventional release mechanism.
The Engineering Challenge
The temple featured a severe internal undercut required to house the electronics flex cable — but the internal cross-sectional space was extremely confined. A conventional angled lifter, the standard fix for an internal undercut like this, physically could not fit inside the cavity without colliding with the ejector pins. Using the standard mechanism would have meant redesigning the part around the tooling limitation instead of the other way around, threatening to stall the entire NPI (New Product Introduction) schedule.
The YG TECH Solution
Our engineering team set the standard lifter approach aside and designed a custom mechanical collapsing core instead. As the mold opens, this specialized core collapses inward on itself, releasing the severe undercut without requiring any extra lateral space for a lifter to travel through — solving a geometry problem that a catalog mechanism simply couldn’t.
That solved the ejection problem, but created a second one: the confined space also ruled out normal water cooling channels, which would have caused heat to accumulate around the core and warp the part on ejection. We machined the collapsing core itself out of Beryllium Copper (BeCu) instead of standard tool steel. BeCu typically runs 100–200 W/m·K in thermal conductivity, roughly three to five times higher than standard P20 mold steel — conductivity high enough to pull heat out of that confined space passively, without a water line, fast enough to keep cycle time on target. (Reference: JS Beryllium Copper, Hot Runner Insert Material Guide)
The result was a zero-defect T1 yield on a feature that, with a standard lifter, wouldn’t have fit in the part at all. It’s a fairly compact example, but it’s the pattern behind most of our custom tooling work: the part geometry sets the requirement, and the mechanism gets engineered to match it — not the other way around.
Frequently Asked Questions
What actually makes a mold “custom” instead of standard?
A custom mold includes an active mechanism the part geometry requires to release cleanly — a standard mold doesn’t.
- Internal threads, side holes, and confined undercuts all typically require a custom mechanism
- Common mechanisms include hydraulic core pulls, unscrewing cores, and multi-stage lifters
- The mechanism is engineered around the part — not the part redesigned around a standard mechanism
How many cavities can a custom injection mold have?
Custom tooling can scale well beyond typical 1–4 cavity molds — up to 32 cavities for small, high-volume parts.
- Cavity count is limited by part size, press tonnage, and hot runner balance capability
- A balanced hot runner system is required to keep dimensional consistency across all cavities at high counts
- Higher cavitation generally calls for harder, more consistent tool steel to hold tolerance across the full shot count
What steel is best for high-cavitation, high-volume molds?
Premium hardened steels like S136 or NAK80, rather than standard P20.
- P20 is adequate for mid-volume runs under roughly 300,000–500,000 shots
- S136 and NAK80 are specified for high-cavitation, million-shot-plus tooling
- See our injection mold cost guide for a full hardness and lifespan comparison
How long does it take to engineer and build a custom mold?
Custom tooling with active mechanisms generally takes longer than a standard mold, due to the extra design and validation steps involved.
- DFM and mold flow analysis are completed before tool design is finalized, adding time upfront but preventing costly rework later
- Timeline depends heavily on cavity count and mechanism complexity — a single-cavity tool with a simple lifter is far faster than a 32-cavity hot runner build
- Sharing your CAD file early lets us scope a realistic timeline against your specific mechanism and cavitation requirements
